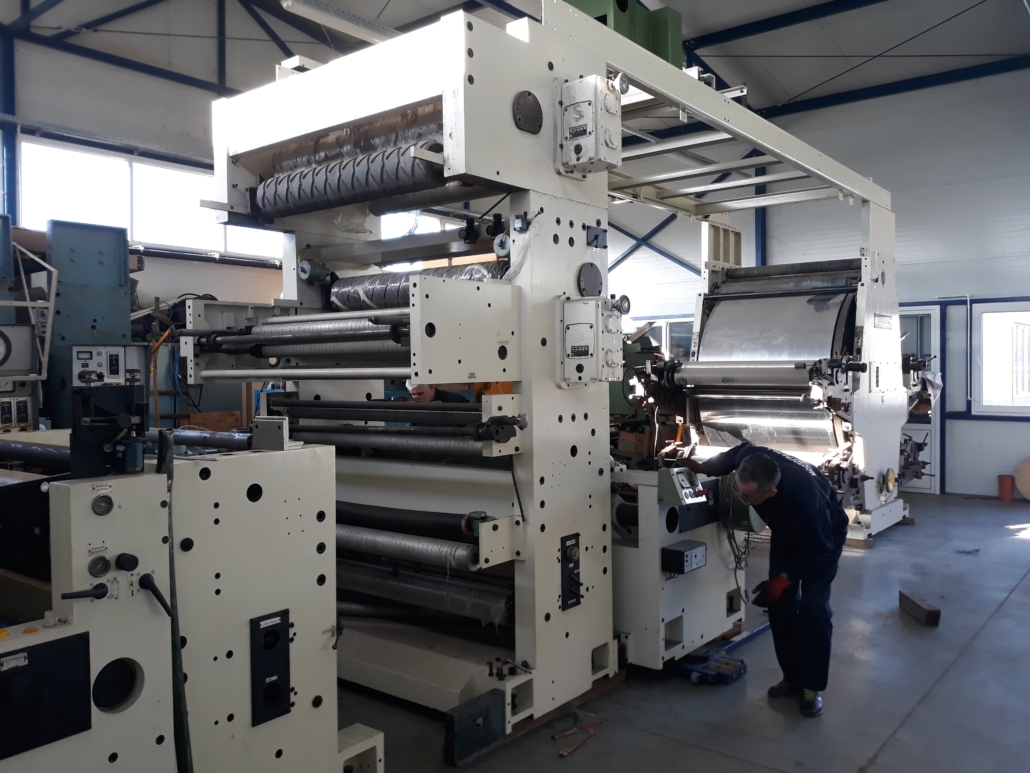

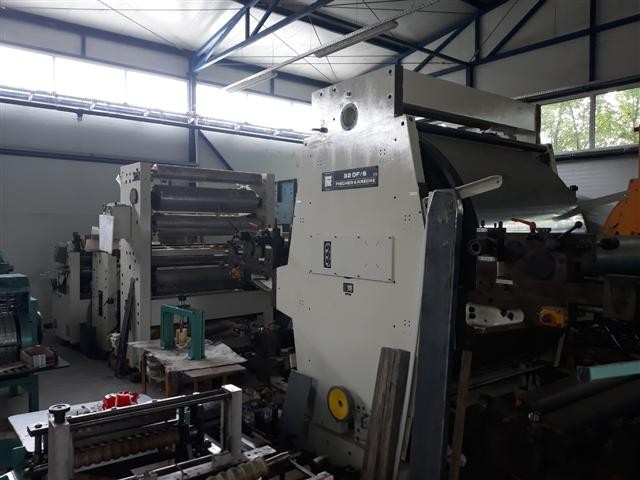

Machine for flexo print “Fischer & Krecke” – 32 DF

Description

• Manufacturer : Fischer & Krecke – 32 DF Germany
• Central cylinder
• Printing width 1300 mm (width of raster)
• Currently 4 colors 4W (possibility to add 2 more colors)
• Chrome raster cylinder – used
• Rubber cylinder – used
• Power balance (drive without drying) ~15 kW
• Max roll: Unwinding Ø1200 = Ø 1000 winding
• Pneumatic shaft sleeve Ø76 mm
• Hydraulic roll lifting
• Hydraulic color separation in print-free mode
• Electric motor with reducer on color mixing (4 pcs)
• Stainless steel paint trays (new)
• Drying bridge
• Rail on the bridge for lifting the cliché roll
• Dimensions 13 x 3 x 3 m
• Condition
• All assemblies inspected, cleaned and painted

Cliché rollers that also exist on the machine, total of 26:

• 32…1 ;  46…1 ; 50…3 ; 62…3 ; 70…4 ; 78…4 ; 84…1 ;  90…3 ; 95…2 ; 101..1 ; 107….3

Machine price

• Machine as described above…… 55.000 €
• Deadline for commissioning: 3 to 4 months
